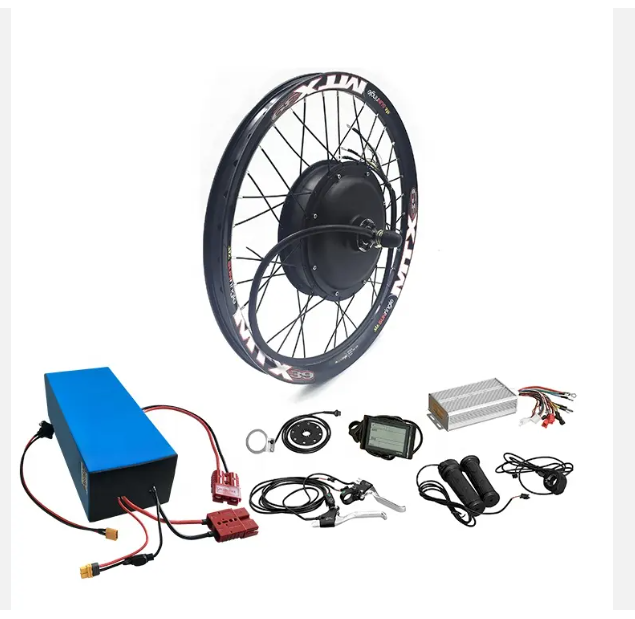

72v 5000w motor kit
72v 5000w motor kit
Couldn't load pickup availability
Packing Items:
| Motor |
1. 1000W rear brushless hub motor with 48V30A controller - Rated speed=45KM/H 2. 1500W rear brushless hub motor with 48V35A controller - Rated speed=50KM/H 3. 2000W rear brushless hub motor with 48V40A controller - Rated speed=60KM/H 4. 3000W rear brushless hub motor with 72V60A controller - Rated speed=70KM/H 5. 5000W rear brushless hub motor with 72V80A controller - Rated speed=80KM/H |
||||||||
| Wheel | 26inch Sunringle MTX39 wheel | ||||||||
| Display | UKC1 colorful LCD display | ||||||||
| Throttle | Thumb throttle / twist throttle | ||||||||
| PAS | 1:1 intelligent pedal assistant system. (12 points magnets) | ||||||||
| Braking | E-brake levers / E-brake sensor for motor power cut off | ||||||||
| Brake | Hydraulic disc brake system (Optional choice) | ||||||||
| Battery | Lithium-ion battery (Optional choice) | ||||||||
| Charger | AC 100-240V 2amps/3A/5A smart charger (Optional choice) | ||||||||
Details:
1. Brushless non-gear rear hub motor
1) Installation width: rear=135/142/150/170/190mm.
2) Color: black or sliver
3) The speed of the motor will be 45-80KPH.
4) The size of the rim is 20",24",26",27.5" or 700C(28inch) . Please confirm the size in advance.
2. Controller
1) 48V30A 12 tubes controller
2) 48V35A 15 tubes controller
3) 48V40A 18 tubes controller
4) 72V60A 18 tubes double sides controller
5) 72V80A 18 tubes double sides controller
3. Display- UKC1 Colorful LCD
1) Single trip time(TM) + total trip time(TTM) Real time km/h or MPH display
2) Single Max speed(MXS) + single Average Speed(AVS)
3) Single trip distance(DST) + Total Trip distance(ODO)
4) 6km/h cruise function, head ligth, back lights, switching opitonal, brake status showing
5) torque sensor imulation speed sensor 0-5 level + battery capcity showing
6) 24V,36V,48V,72V compatiable.
7) Controller can be reprogrammed by parameter setting.
8) Data clear + parameter copy + fault code disply.
4. PAS: 12 magnents PAS
5. Throttle: Thumb throttle, twist throttle or half twist throttle for option
6. Brake levers: High quality e brake and hydraulic ebrake sensor for option
7. Lithium-ion battery: 48V or 72V lithium battery with smart charger
Other electric bike kit:
72V 5000W electric enduro bike full parts complete kit
72V 8000W electric enduro bike full parts complete kit
Service:
1. Warranty: 3 years of motor, 1.5 years of battery, 1year for other ebike parts.
2. OEM &ODM are available as customers demand.
3. 7 years professional R&D, working experience and sales.
4. Workers well trained, every single part tested before packing.
5. 24-hour online customer service.
6. Timely and effective after-sales service.
